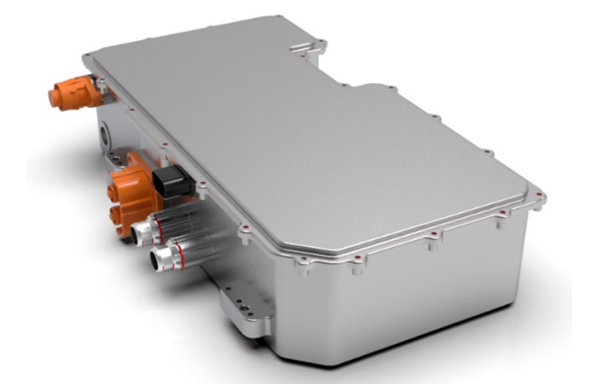

40kW High Power Charging Module

• High safety level

• High Reliability

• Cost-effective

• Long Lifespan

• Output power: 40 kW at voltage range 250 - 1000Vdc.

• Full DSP digital control, all software upgrade online, easy to maintain.

• Four Power MOSFETs and related control components: V2G function included.

• Electrolytic capacitor-free design.

• Stereoscopic waterway design.

• IP65 Protection Rating.

WLC - Charging Mode

• AC input voltage/frequency range: 380Vac±25%/45Hz - 65Hz

• Max. input current(per phase):63A

• Power factor:≥0.98

• DC output voltage range:250 - 1000Vdc

• Rated output power:40kW

• Max. output current:133A

• Average efficiency:95%

System

• Cooling mode:Liquid cooling

• Cooling medium temperature range:-40℃-70℃

• Ambient temperature range:-40℃-85℃

• Weight:30kg

• Volume:445*408*122mm

• IP Protection:IP65
